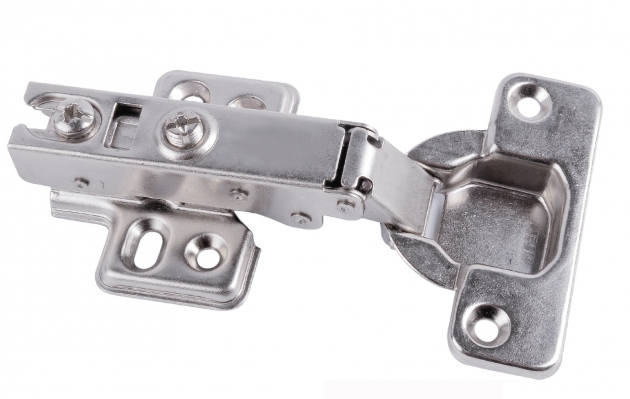

Fix-On Soft-Closing Hinges (One Step)-DB11
Add to inquiry box
Production information
Material
Nickel-Plated Stee
MOQ
Negotiable
Specification
■ Opening angles: 105º
■ Depth of hinge cup: 11.3mm
■ Diameter of hinge cup: 35mm
■ Drilling Distance: 3mm-7mm / Standard 5mm
■ Door thickness: 14mm-23mm
■ Hole axis of hinge cup: 45/48/52mm
■ Hinge cup material: Nickel-plated Steel
■ Hinge arm material: Nickel-plated Steel
■ Mounting plates material: Nickel-plated Steel
■ Mounting plates: 4-Hole
Overlay
Small Overlay
Half Overlay
Inset
